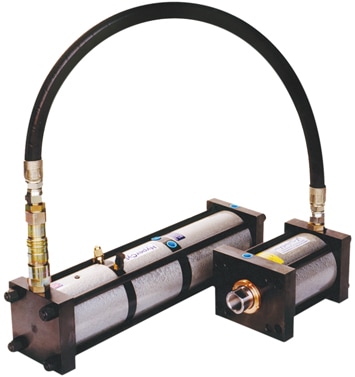

The HPS Series design provides a very compact package where space is limited or where strokes are long. The “HPS” Series satellite cylinder is a totally self-contained and cost-effective power source while permitting the working cylinder to be located up to 10 ft. from the booster/reservoir for ease of mounting/operation. Both components may be mounted in any position or attitude. Multiple working cylinders can be operated with a single booster/reservoir unit, application dependent.

Standard designs available in sizes from 1-Ton to 200-Tons, up to 8.00″ stroke and 1.00″ power stroke. Customized stroke and power stroke lengths are available upon request with up to 28.00″ of Total Stroke and 6.00″ Power Stroke depending on application.

Advantages:

-Multiple mounting configurations available
-Wide selections on strokes
-Most overall options available in a given series
-Initiation of power stroke anywhere within the total stroke
-Custom strokes available
-Custom rod ends available

HPS Matrix

OPTIONS

  • PAF/PAQ die set couplings
  • Rod Lock Option
  • PT/ELT Sensors
  • Gage Kits
  • SW Psi. switch, analog or digital
  • Fill Units, manual/automatic
  • HyperCyl IntelliCyl Force/Distance Monitoring System includes:
  • Low Voltage Linear Transducer with cable
  • Load Cell with cable
  • SRCM Signature Analysis Controller



HOSE SPECIFICATIONS FOR HPS CYLINDER

CYLINDER OUTPUT SAE HOSE SIZE HOSE ID HOSE OD WORKING PSI MIN BEND RADIUS WEIGHT LBS/FT
1 & 2 TON – 8 SAE 0.500″ 0.94″ 4000 3.5″ 0.62
4 & 8 TON – 12 SAE 0.750″ 1.21″ 4000 4.75″ 0.94
10/15/20 TON – 16 SAE 1.000″ 1.50″ 4000 6.00″ 1.34
30 TON AND UP – 20 SAE 1.250″ 1.84″ 3000 8.25″ 1.74



Modifications such as rod end styles, port locations, approach and power stroke lengths are options available upon request. Please contact your local AEC Representative for assistance. AEC reserves the right to change specifications. CAD disks (.dwg, .dxf format) are available for the full line of HyperCyl cylinders.
