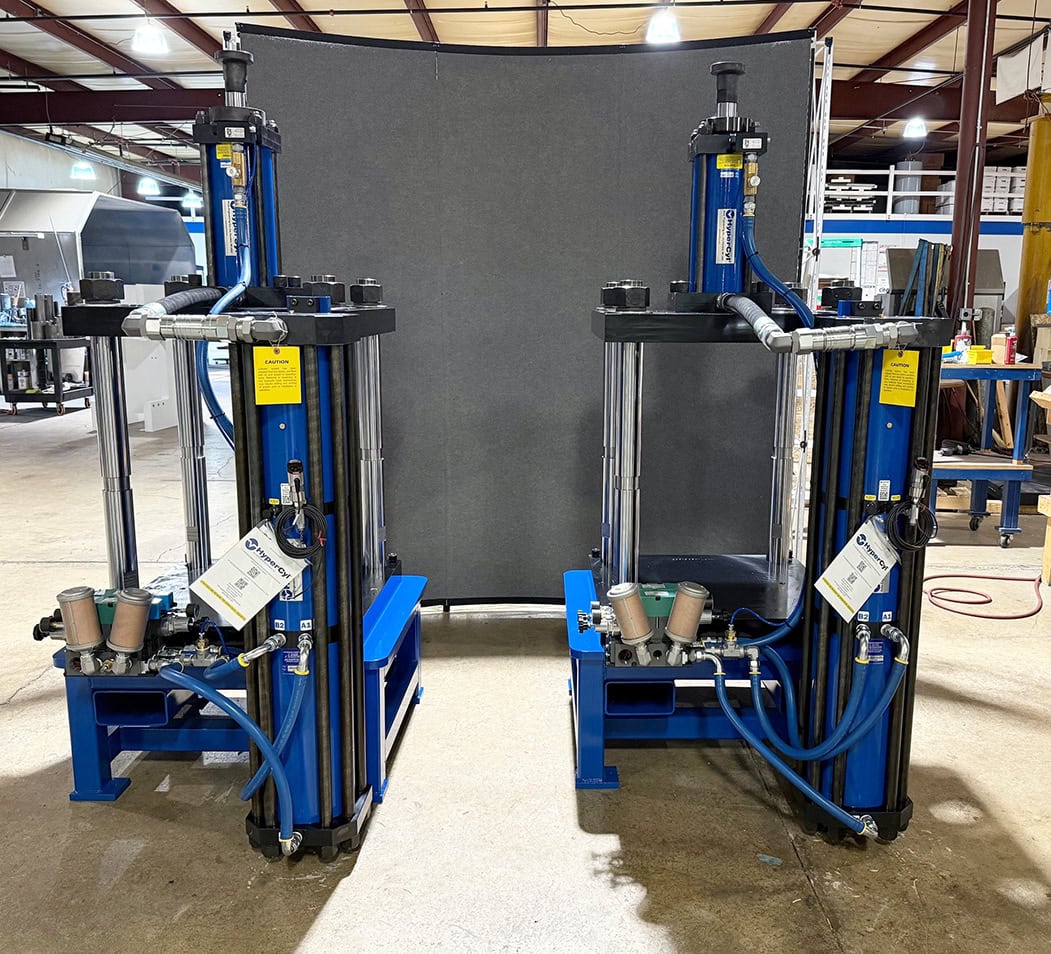

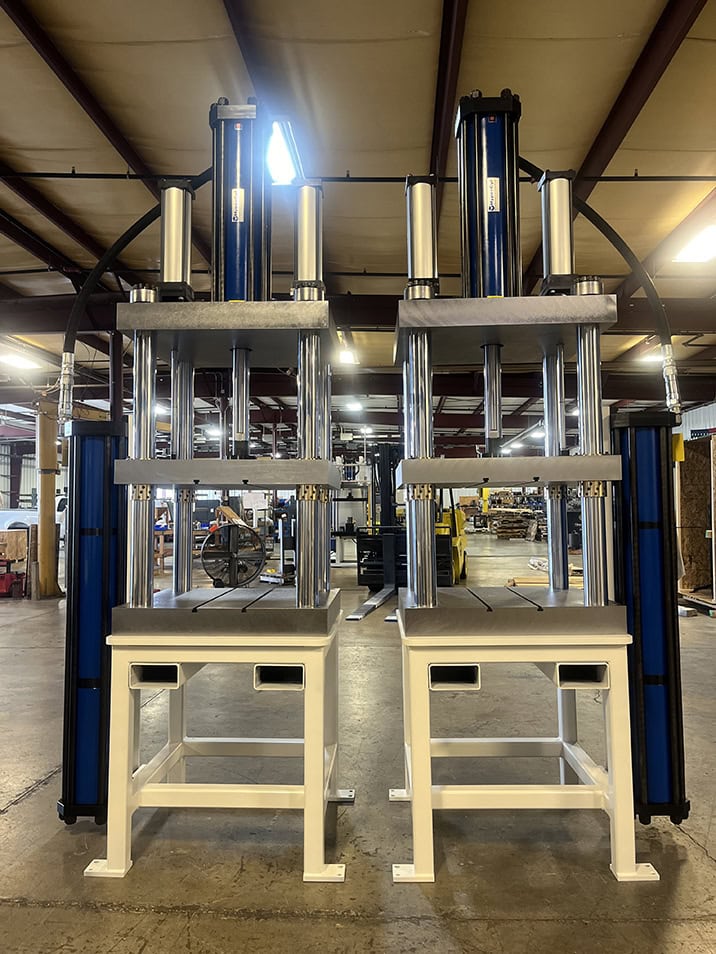

A very pleased Automotive Manufacturing HyperCyl Customer recently received their delivery of presses from Aries Engineering. These 4-Post Guided 40-Ton H-Frames included the HPI series cylinder + Load Cell to produce 80,000 Lbs. of output force using only 100 PSI input air and verify said output force using the Load Cell.
Here are just some examples of Cylinder and Frame Builds for applications including but not limited to:
–Bumper Fascia Punch Cylinders

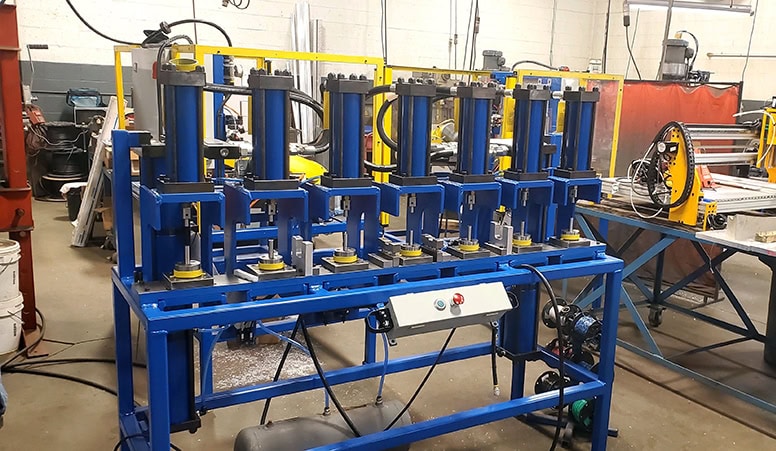

–Square Tube Punching Cell with multiple heads
–Munitions manufacturing within explosive environment
–4-Post Frame Punching with slug-drop
–50-Ton Rivet Press with Stroke Limiter
Here are just some examples of Cylinder, Frame and Base Press Builds for applications including but not limited to:
–ClinchNut Press Frame, Base, Air Prep
–Multiple ClinchStud Press, Frame, Base, IntelliCyl

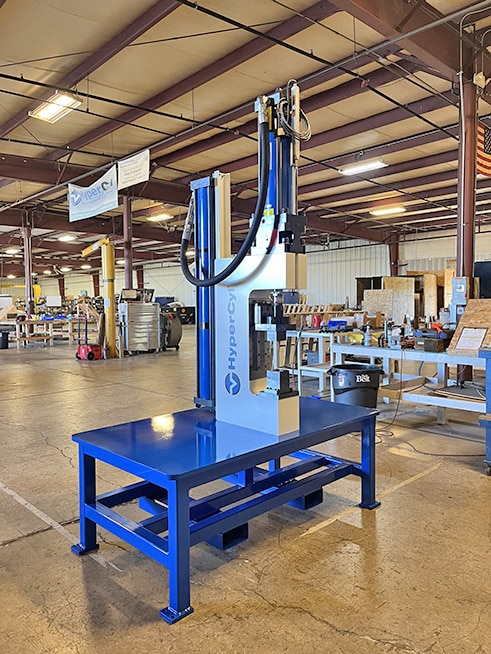

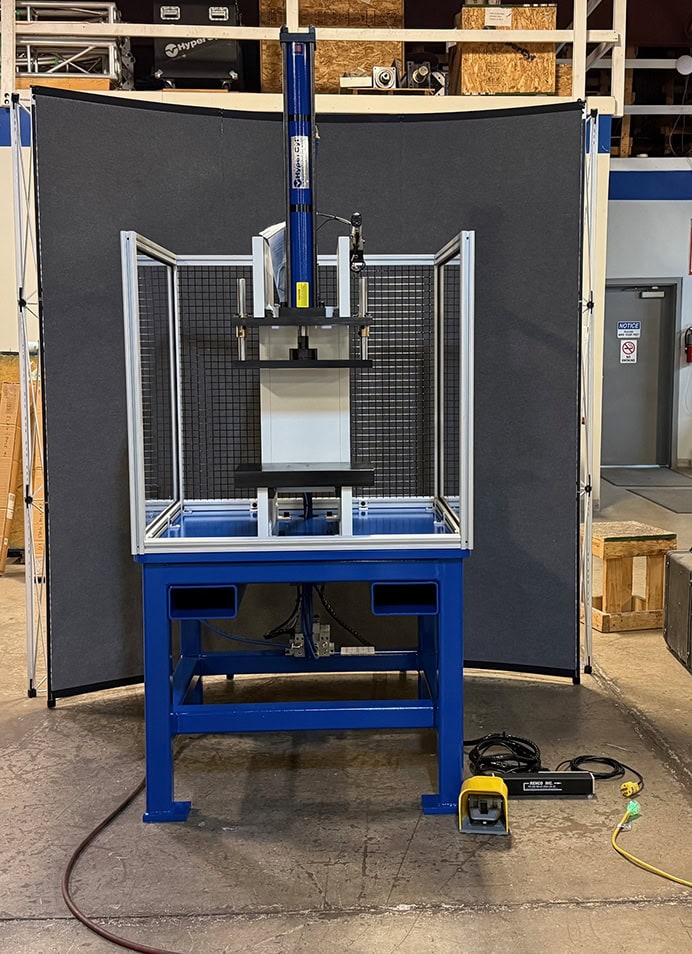

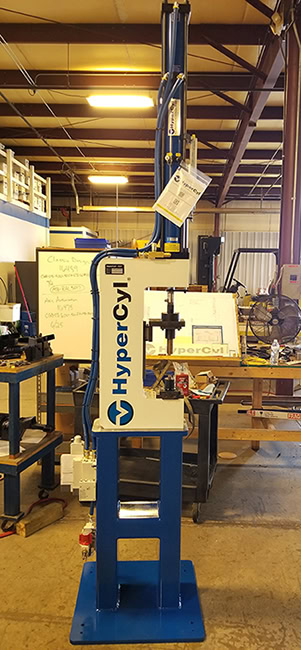

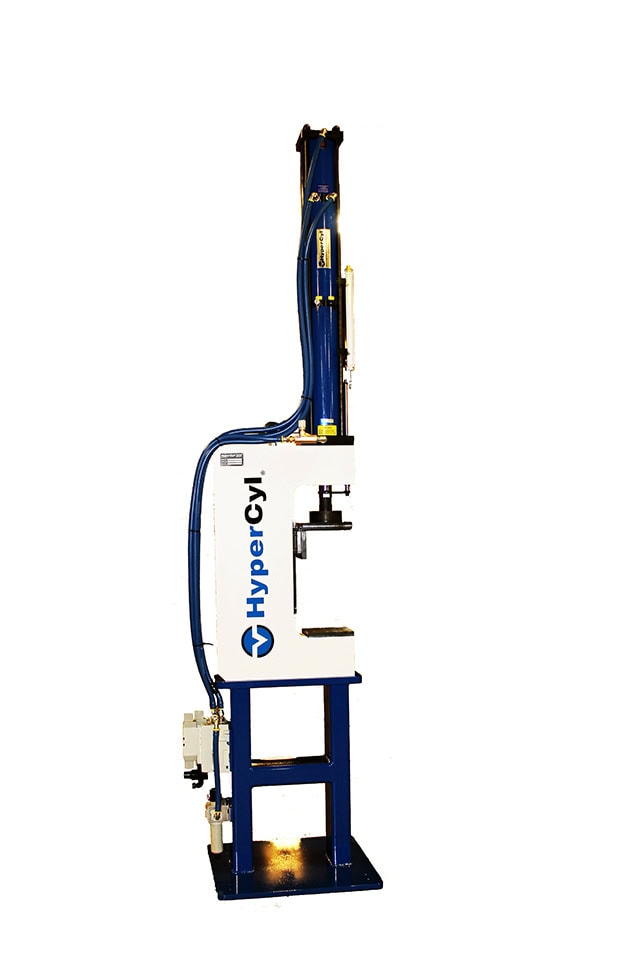

–Universal C-Frame press with Footpedal cycle start and Guarding
–Tabletop Press with pressure switch and 2-hand safety
–Multiple Clinch-Nut installation Platen Press
–Robotic Cell ClinchNut Presses with guided Tooling

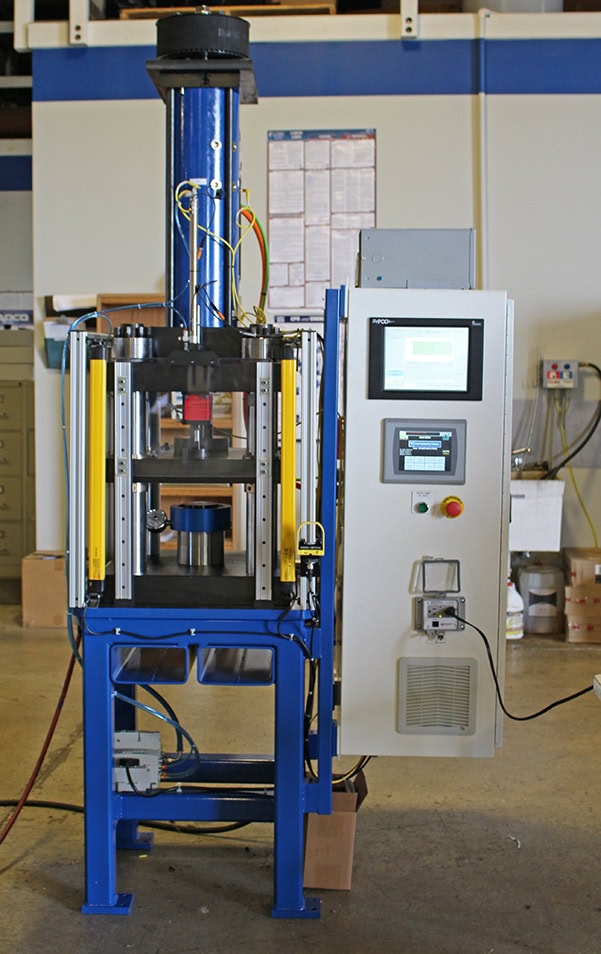

–Lightweight Aluminum Platen cell with Guarding and Light Curtains
–30-Ton Clinch-Nut Cell with Distance sensor and valve package

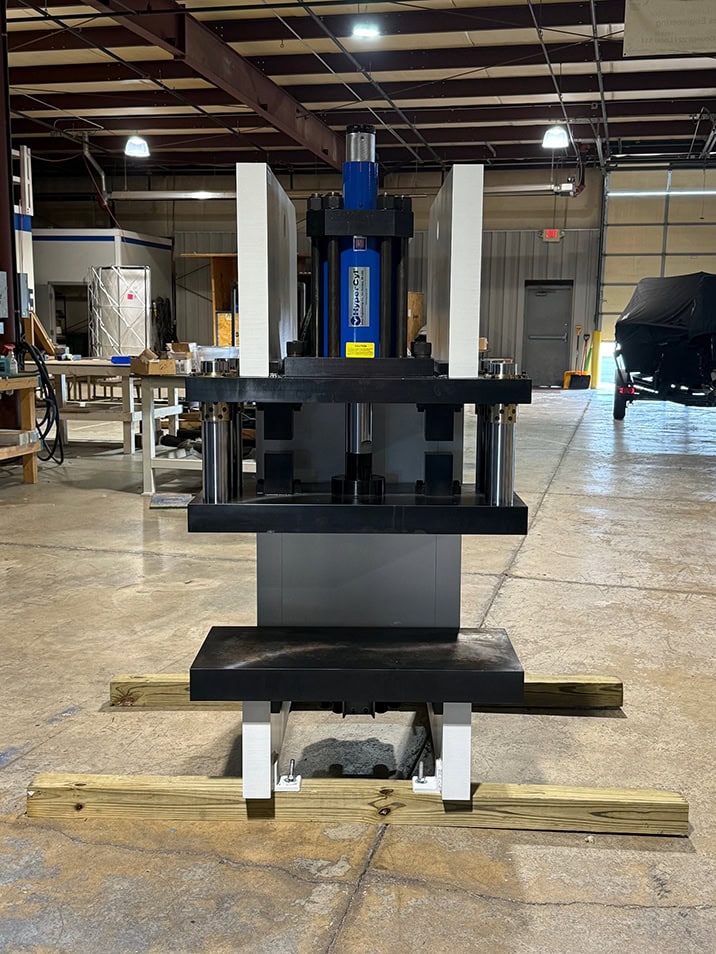

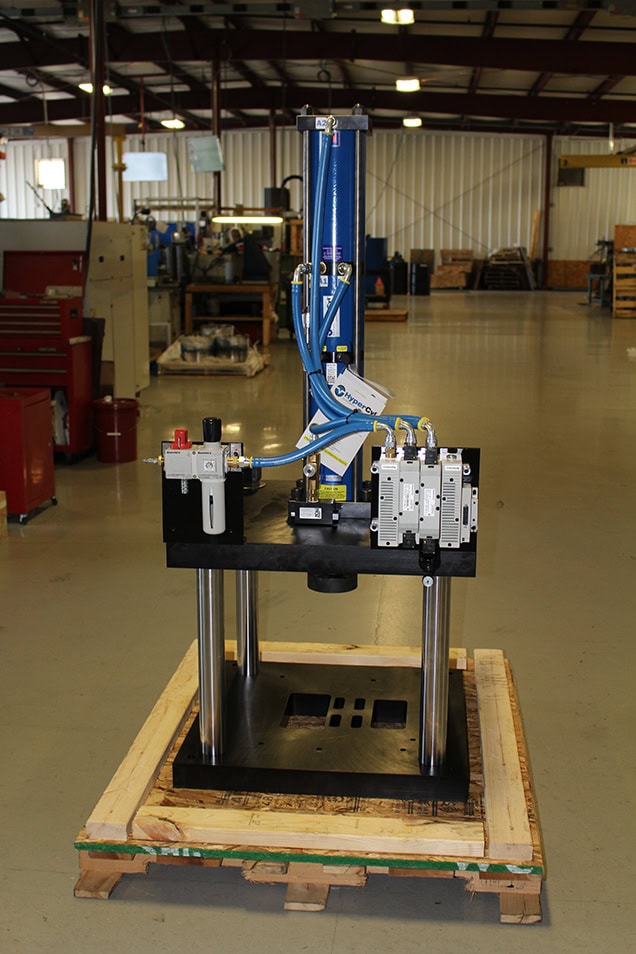

–4-Post, 30-Ton Platen Press with valve package and Base
–Vertical Rod Up 10-Ton Press for limited Height usage with basic controls
Here are just some examples of Tooling-Ready Turnkey Press Builds for applications including but not limited to:
–Tooling-Ready TurnKey Cable Crimping Cell
–Universal C-Frame press with Foot pedal cycle start and Guarding
–Automated 5 inch Steel tube Crimping and Sealing Cell
–Tooling-Ready TurnKey Cable Crimper Cell with Force Distance feedback
–Standalone Tooling Ready TurnKey for Manual loading/unloading
–Tooling-Ready TurnKey HydroForming Cell with pressure hold and Thermocouple

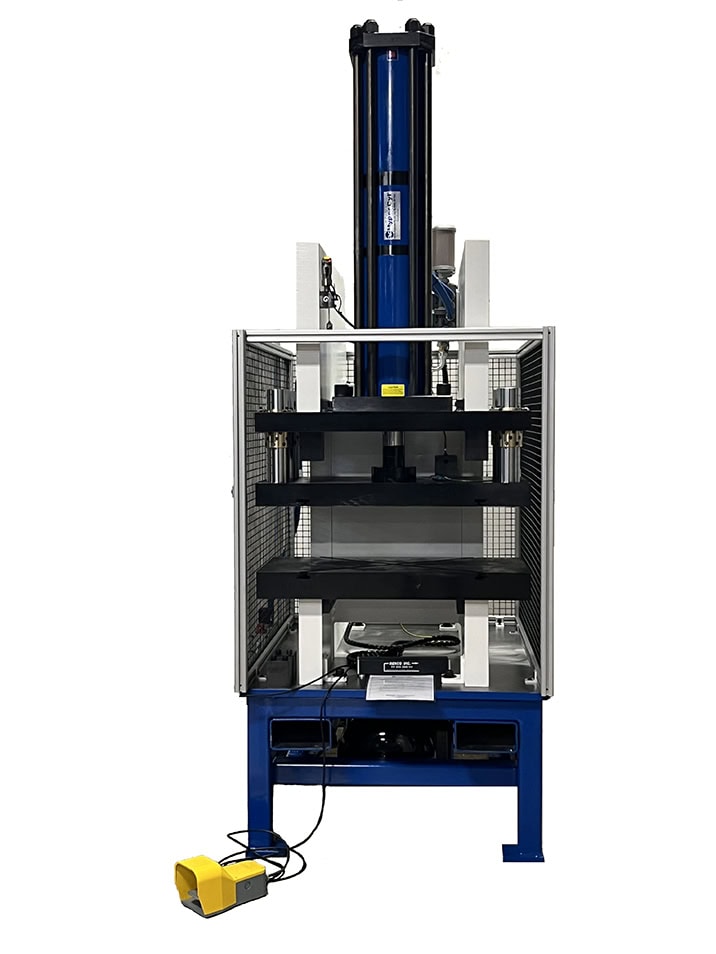

–50-Ton Foot-Pedal activated Tooling-Ready Turnkey Guided press w/remote pressure switch; Sheet Metal Punching cell with guarding and safety door
Here are just some examples of Full Turnkey Press applications including but not limited to:
–TurnKey Battery manufacturing and compaction cell, or TurnKey Test Cell with Force – Distance feedback
–Spring-Loaded, heavy duty Caster Test Cell with differentiating Force and Distance setpoints
–Full TurnKey cell, (manual-load) to assembly Spider brackets with bushings and seals for Diesel trucks

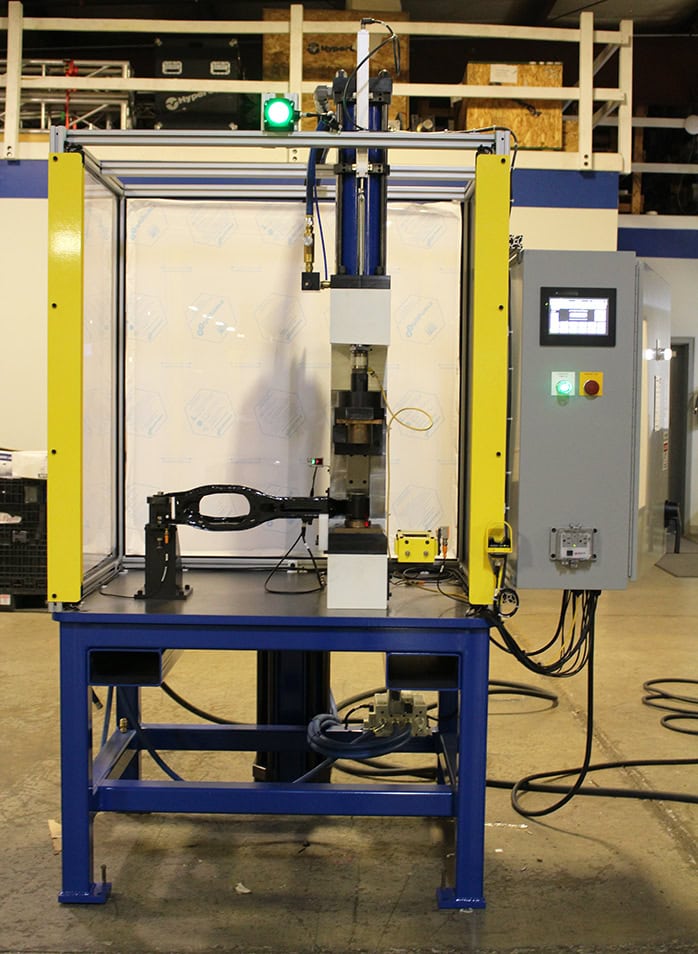

–20-Ton Bushing Insertion press with Force + Distance feedback, barcode reader for serialization of Suspension arm
HyperCyl is pleased to work with Michigan Custom Machines in the production of this custom press for an automotive manufacturing customer.
HyperCyl strives to help each customer meet their specific application needs, including customization. Below is a HyperCyl HPS Cylinder in a custom orange color that was color matched to the customer’s logo specifications. Special oil was also used in this application for food-grade purposes. This cylinder is integrated within a customized cell purpose-built for dispensing cartridges. The HyperCyl cylinder installs (100) caps simultaneously onto cartridges with a controllable force and up to (1800) parts per hour capacity.
