RODlockpic2


(AL) Mechanical Rod Lock



The “AL” Rod Lock option is a locking device installed on the head end of the cylinder that provides a positive locking of the cylinder rod when air is removed from the lock. The locking action is designed where safety considerations require positive locking of the tooling/actuator when air pressure is removed from the circuit. The rod lock option is available for all 1 through 30 ton HyperCyl® cylinders. Rod Lock – 60 PSI minimum air pressure required.

Available Series: HPI, HPS, HPT, HPX, HZ, HZS.

  ltipic

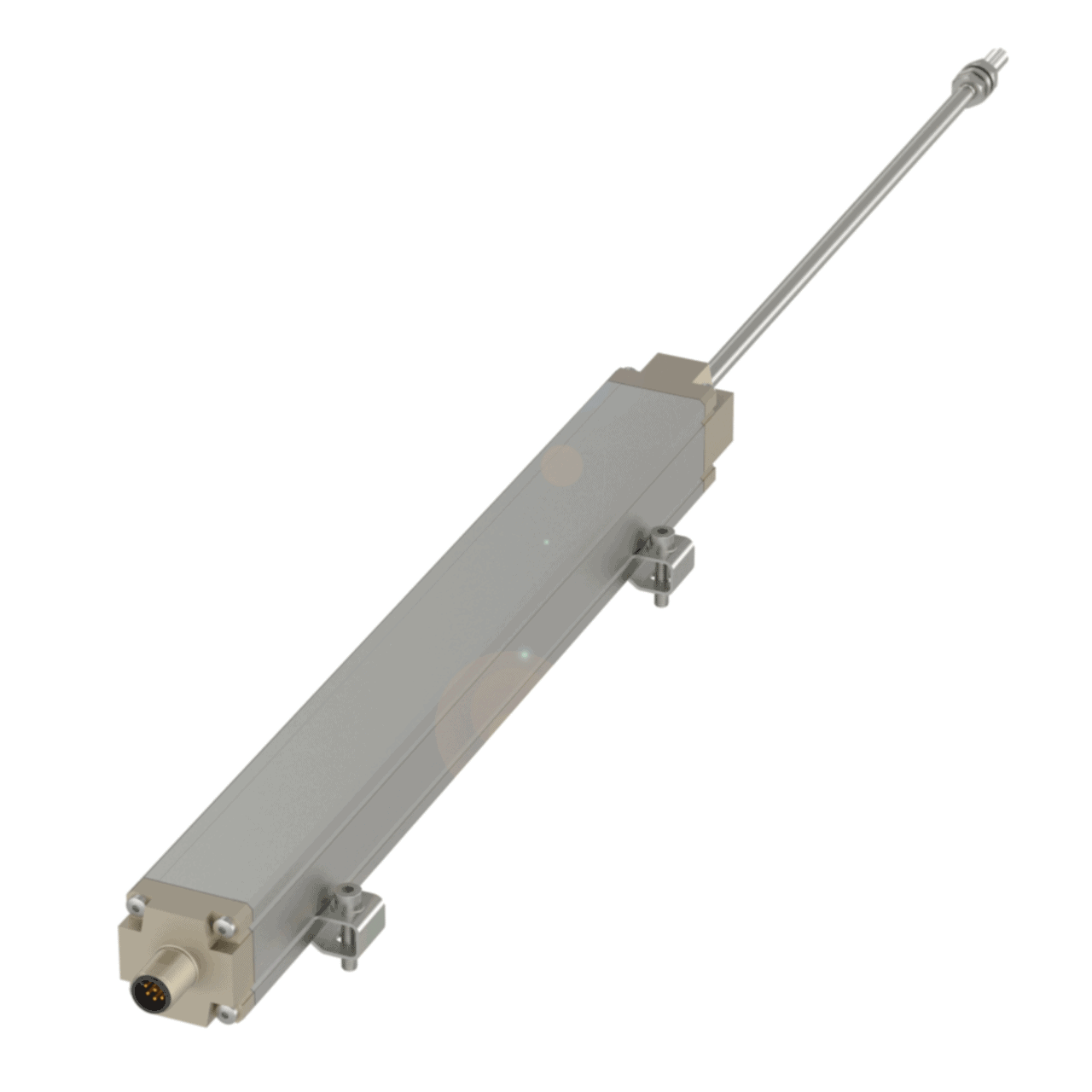

(LTI) External Linear Transducer



Low Voltage Linear Transducers VIEW
Magnetostrictive technology with Auto Tuning, non-contact, wear free, Analog, Digital, SSI, Pulse, CANopen, Profibus and Quadrature output, .0001″ resolution capable, 7-pin connector/cable. NOTE: Non-Rotate option required for addition of LTI.

View- LTI Manual

-Resolution: 0.66A
-Non-linearity: +/- 0.02% over full scale
-Repeat-ability Resolution: min 2m
-Sampling Rate 2KHz
-Operating Voltage 24Vdc or 15Vdc

Available Series: HPI, HPS, HPT, HZ and HZS.



  45100_00_P_08_0100_00_00

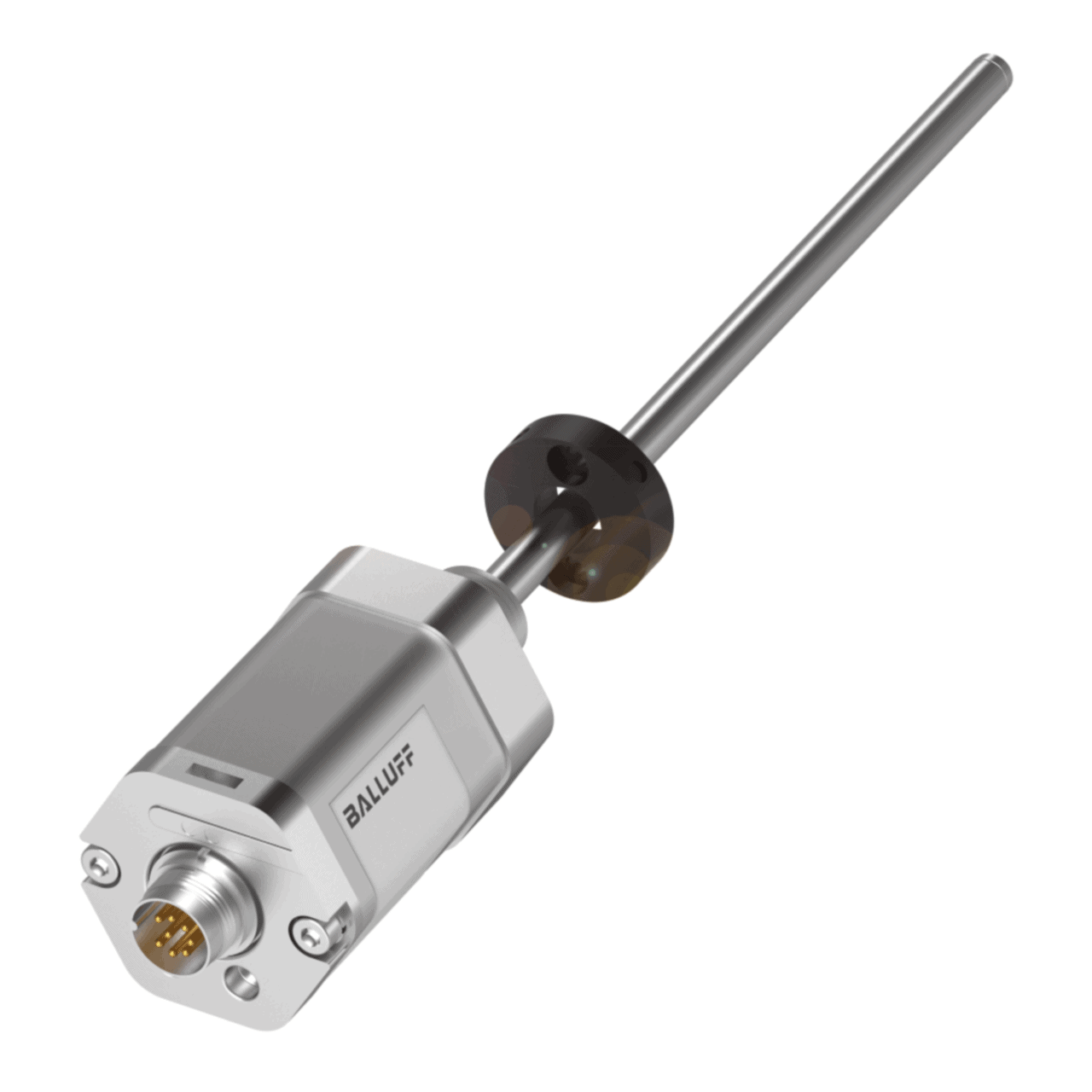

(LT) Internal Linear Transducer



Integrally Mounted Low Voltage Linear Transducers –VIEW  Magnetostrictive technology with Auto Tuning, non-contact, wear free, Analog, Digital, .0001″ resolution capable, 7-pin connector/cable.

View-LT Manual

-Resolution: 0.66A
-Non-linearity: +/- 0.02% over full scale
-Repeat-ability Resolution: min 2m
-Sampling Rate 2KHz
-Operating Voltage 24Vdc or 15Vdc

Available Series: HPS, HPT and HZS.

  loadcell 2

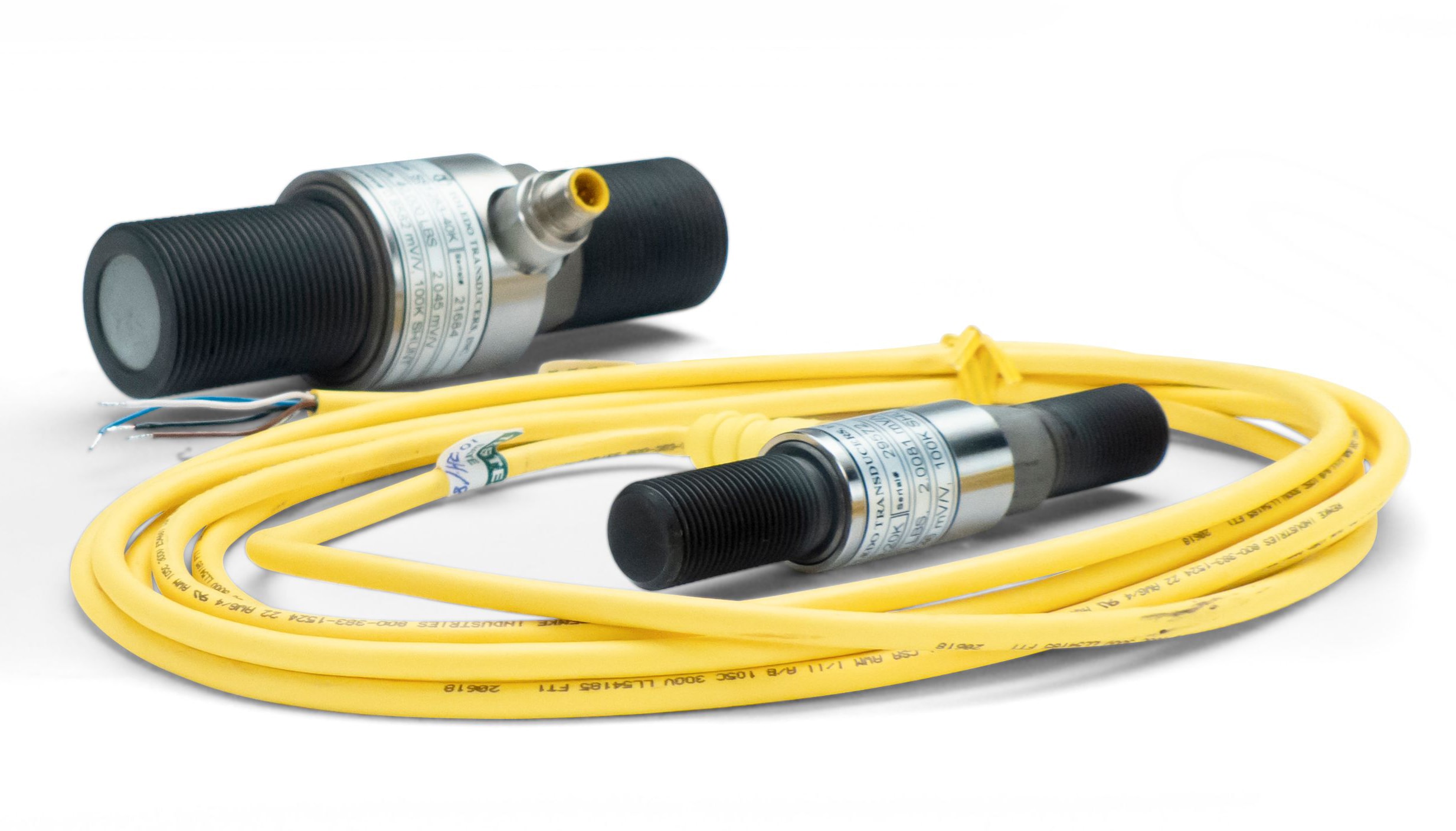

(LC) Load Cell



Strain bridge design load cell. Load cell O.D. matches drive unit ram O.D. for a compact, integrated design. Mini Brad-Harrison style four 4-pin connector. Signal conditioner is required.

-Rated Output: 2mV/ V
-Combined Error: 0.25% of full scale
-Non-repeatability: 0.05%
-Zero Balance: 1%
-Excitation Voltage: 10VDC
-Maximum Load: 200% of full -scale (ultimate) / 150% of full scale (safe)

Available Series: HPI, HPS, HPT, HPX, HZ and HZS.

(TSL) Total Stroke Limiter

The “TSL” option limits the total stroke of the cylinder, including the power stroke. Adjustment is accomplished by rotating the adjustment barrel and locking ring.

Not available on HPI or HZ unit.

Available Series: HPS, HPT, HPX and HZS.

Read More…

  bsppport

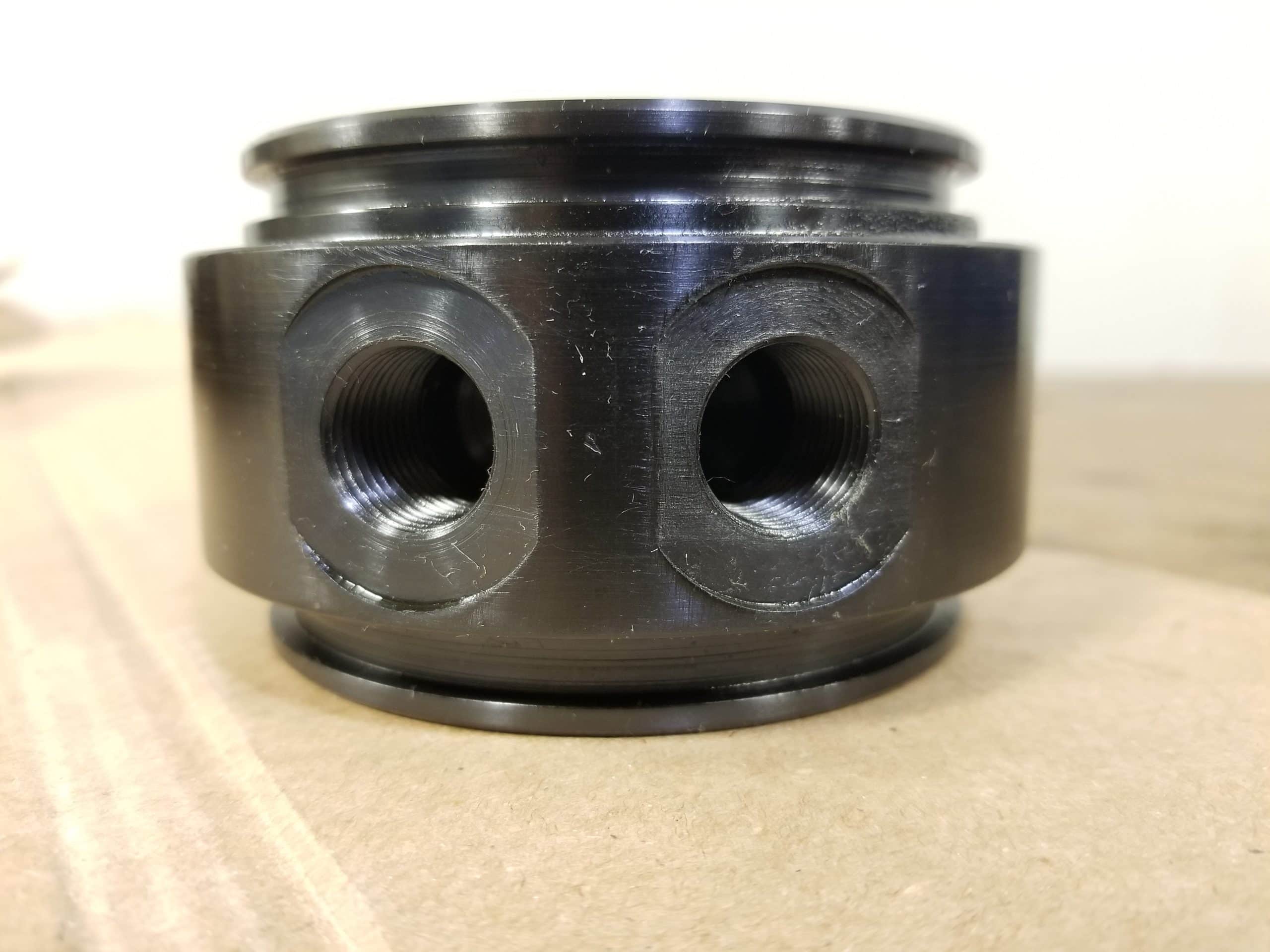

(BSPP) Pneumatic Porting



Pneumatic porting available to order in BSPP porting. All pneumatic ports (4).

Porting of “NPT” is standard.

Available Series: HPI, HPS, HPT, HPX, HZ and HZS.

  HPS-1-4.00-.25-FH-NR-2 (002)


(NR) Non-Rotate



Utilizing the flats on the external work rod, the Non-Rotate option provides a mechanical non-rotate rod/adapter plate for Anti-rotate.

Included: NR plate, NR rod, NR/FH head and fasteners.

Available Series: HPI, HPS, HPT, HPX, HZ and HZS.

  HPS-1-8.00-.50-FH-PR

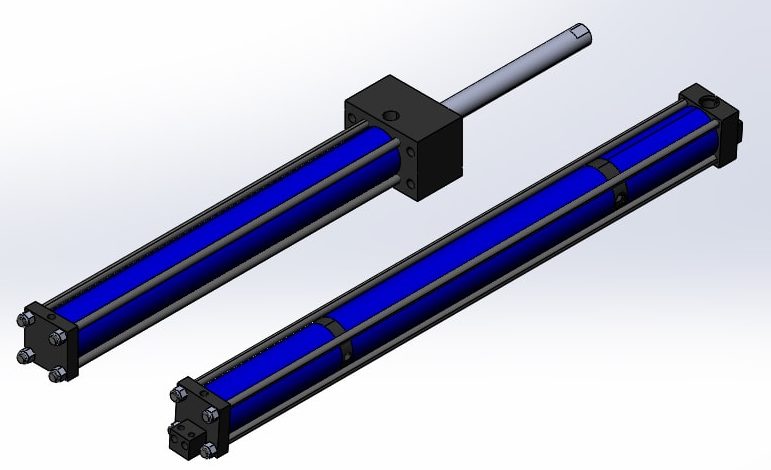

(PR) Power Retract



The Power Retract option offers customers the typical Hypercyl stroke and power stroke in the “Pull” instead of push direction. Available to order.

Available Series: HPS, HPX and HZS.

  HPS-10-2.00-.25-FH-S(BFM)

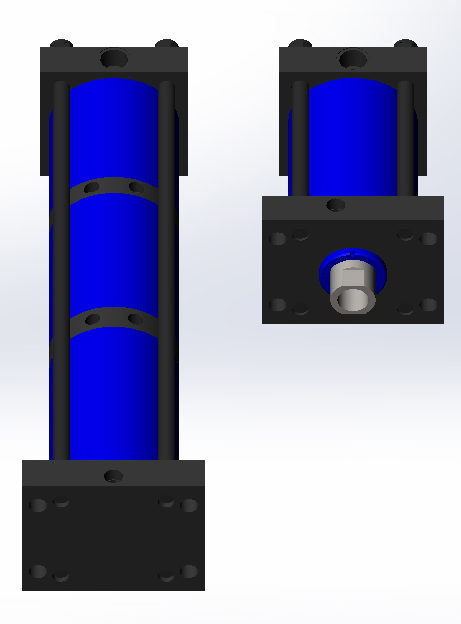

(BFM) Booster Flange Mount



An alternate to the standard booster mounting brackets, Booster Flange mounting is available at request. BFM provides a (FH) style mounting flange similar to the Work Section for single point vertical mounting.

Available Series: HPS, HPX and HZS.

  Cylinders


(S) Non-standard Rod End



The cylinder rod end can be modified to adapt to customer tooling, die plates and/or just about anything else that is required. Please make your request known during the quoting process.

Standard– Female, imperial thread.

Available Series: HPI, HPS, HPT, HPX, HZ and HZS.
