FORCE PAC

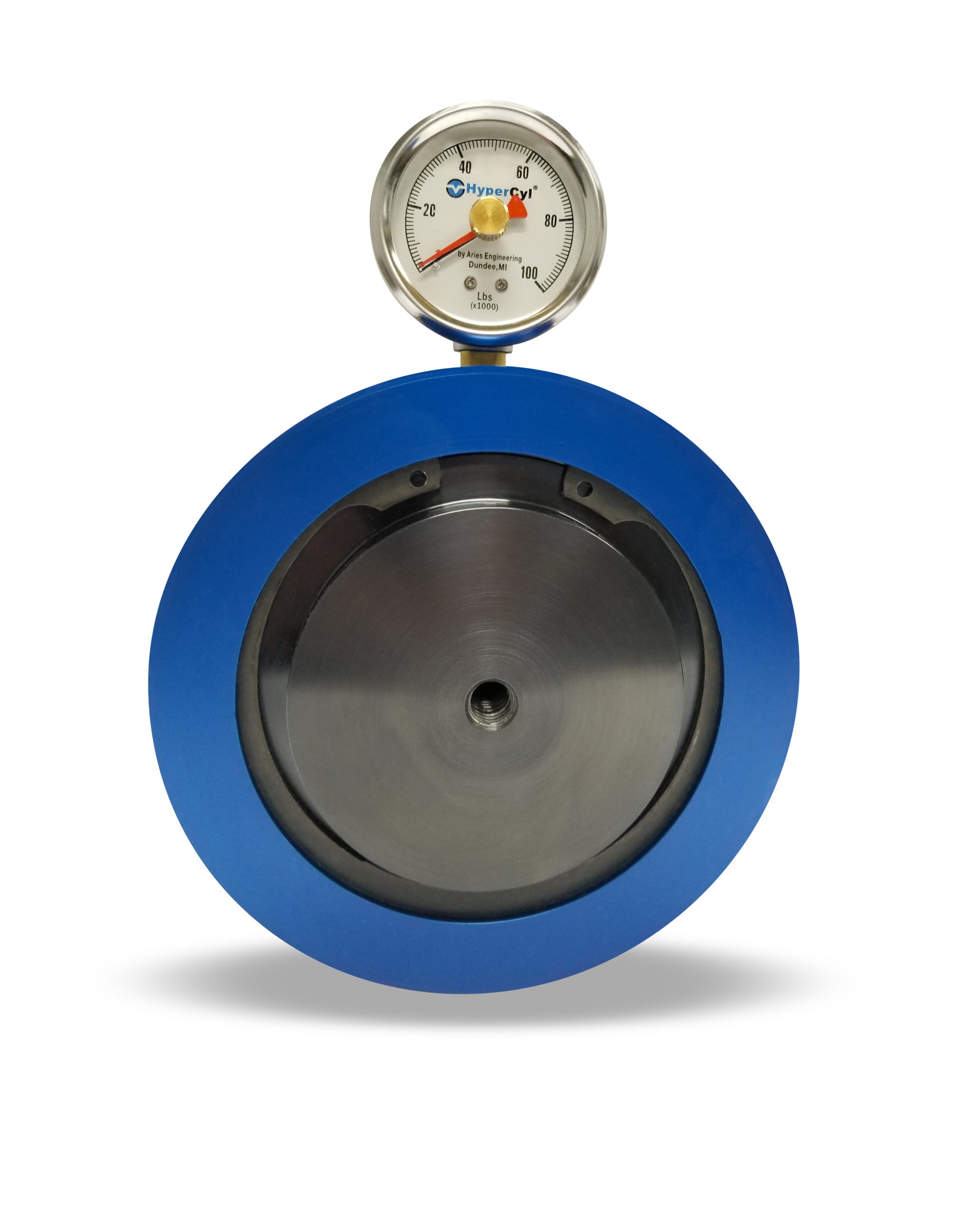

The ForcePac is a Hydraulic Load Cell with a conventional piston and cylinder arrangement. All ForcePac Load Cell bodies are made from aluminum with the surface finished in Blue anodized. The Piston is made with a steel surface finished in Black Oxide. The gauge is stainless steel. The ForcePac is pre-filled with oil from the factory. When the load is applied on the piston, the movement of the piston results in an increase of oil pressure that in turn produces a change in the pressure on the gauge, which has been manufactured in conjunction for the relative bore size. Because this sensor has no electrical components, it is ideal for hazardous areas.
- AVAILABILITY: AVAILABLE NOW

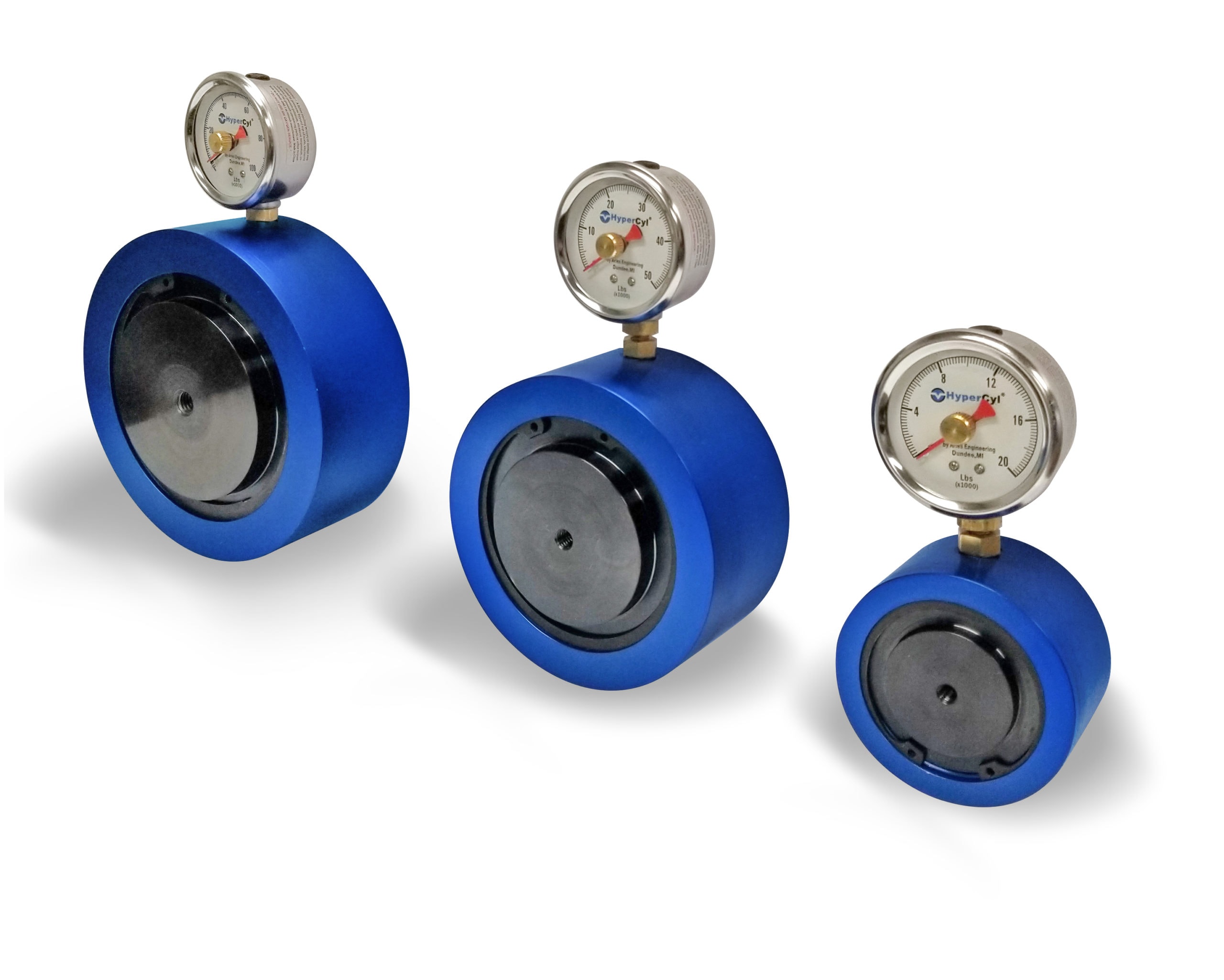

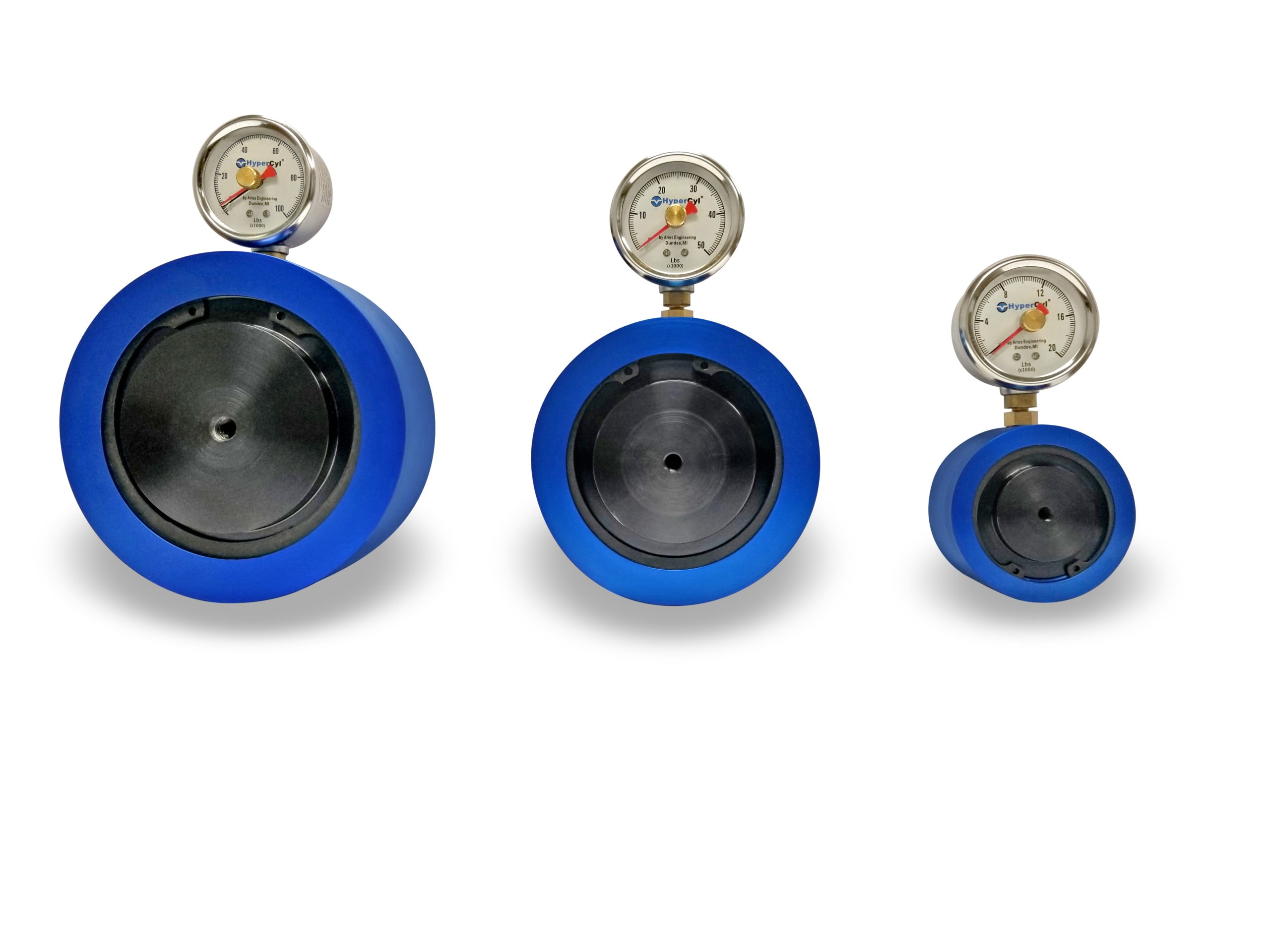

- MODEL: FP-20K, FP-50K, FP-100K
*Other models available for special order
- Single piece unit with eye-bolt lift hole
- 20,000 lbs., 50,000 lbs. and 100,000 lbs. options
- Load verification for platen presses, hydraulic presses, hydro-forming presses and all different application in hazardous areas
- Absolutely NO voltage for power required, self-sufficient design based on internal hydraulic pressure
- Great for usage in areas that electronics would fail, high-voltage situations, explosive environments and combustible environments
- Ideal for tongue weight verifications
| Manual: | ForcePac Manual |
|---|---|
| Important Information: | Operation & Guidelines |
| Warning: | Warning Info |
