HPI SERIES

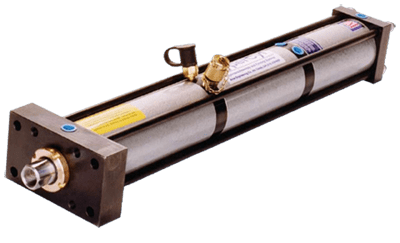

Pneumo-Hydraulic Cylinder

The Inline “HPI” series cylinder provides a reduced overall cost and minimizes the footprint of the power unit within your application versus HPX and HPS. The “HPI” is a totally self-contained, single-piece power source ideally suited for a wide variety of Assembly and Forming applications using only two (2) pneumatic valves for operation. Available from 1-Ton to 200-Tons and up to 16.00″ stroke, and 2.00″ power stroke (depending on force required).

HPI Matrix

FEATURES

  • Total air/oil separation
  • Operation in any position or attitude, longer strokes require vertical mounting
  • Linear force output
  • Three moving components with Internal shock pads standard
  • Fill and high pressure gage couplings
  • Two standard mounting styles available; FH (Flange Head) and UH (Universal Head). NFPA medium-duty Mounting options available upon request
  • Simple control circuits using 2-position spring return OR 3-position open center
  • 100,000 PSI tensile tie rods
  • 4.7 million MTBF, 20 million service life
  • Field serviceable-seal kits
  • Heavy-duty construction designed for years of trouble free use
  • Numerous options, such as Gage kits, sensors, press frames and bases.
  • Limited Lifetime Warranty

OPTIONS

  • PAF/PAQ die set couplings
  • Rod Lock Option
  • PT/ELT Sensors
  • Gage Kits
  • SW Psi. switch, analog or digital
  • Fill Units, manual/automatic
  • HyperCyl IntelliCyl Force/Distance Monitoring System includes:
  • Low Voltage Linear Transducer with cable
  • Load Cell with cable
  • SRCM (single ram) & DRCM (dual ram) Signature Analysis Controller
