PAF/PAQ Series Alignment Coupling

pafpic

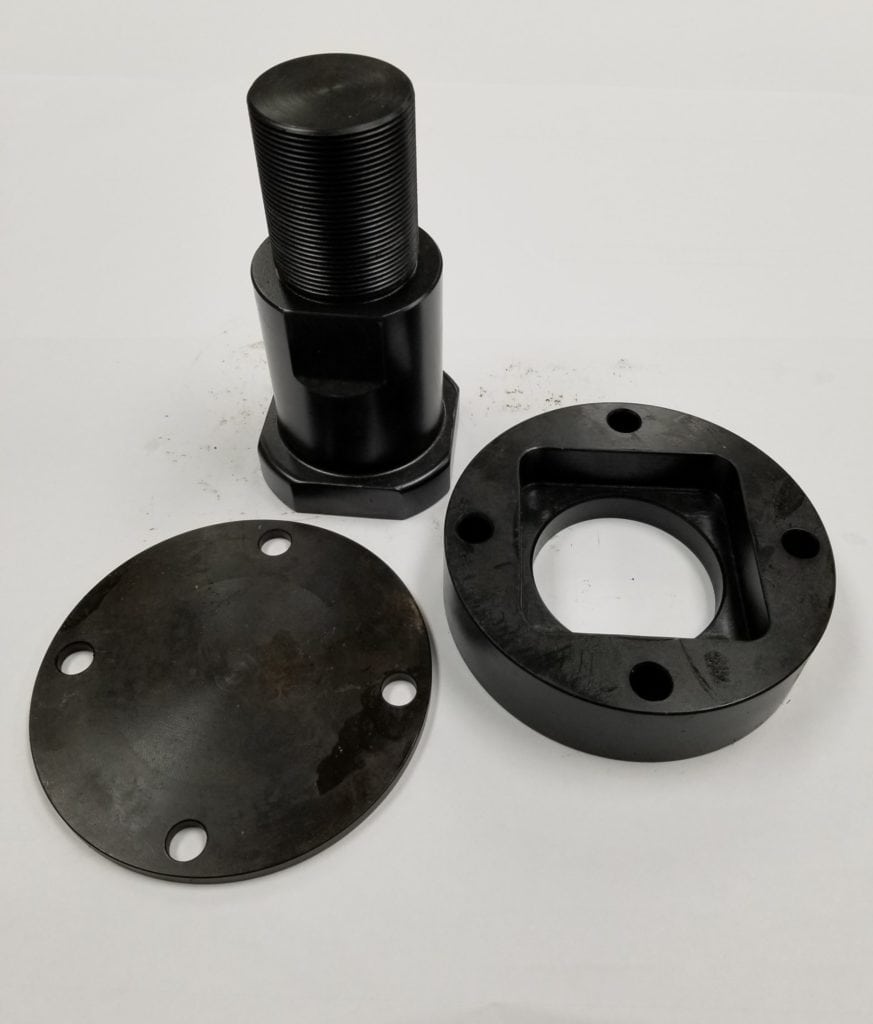

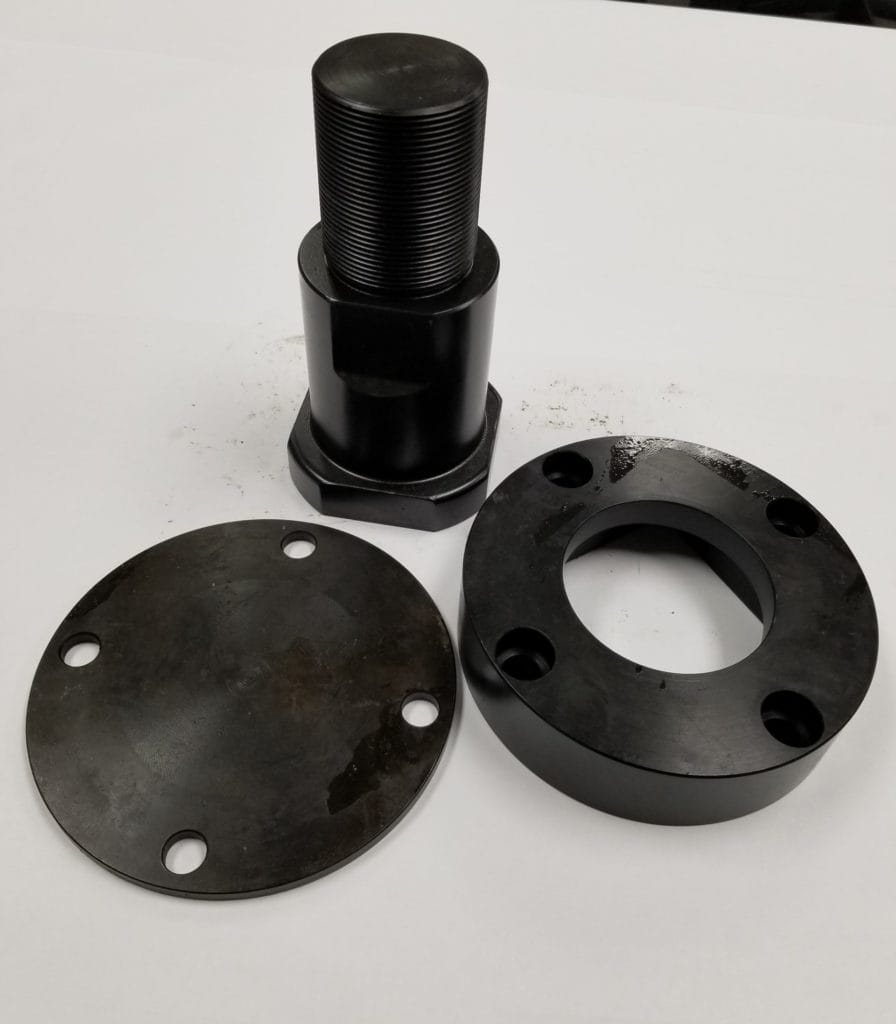

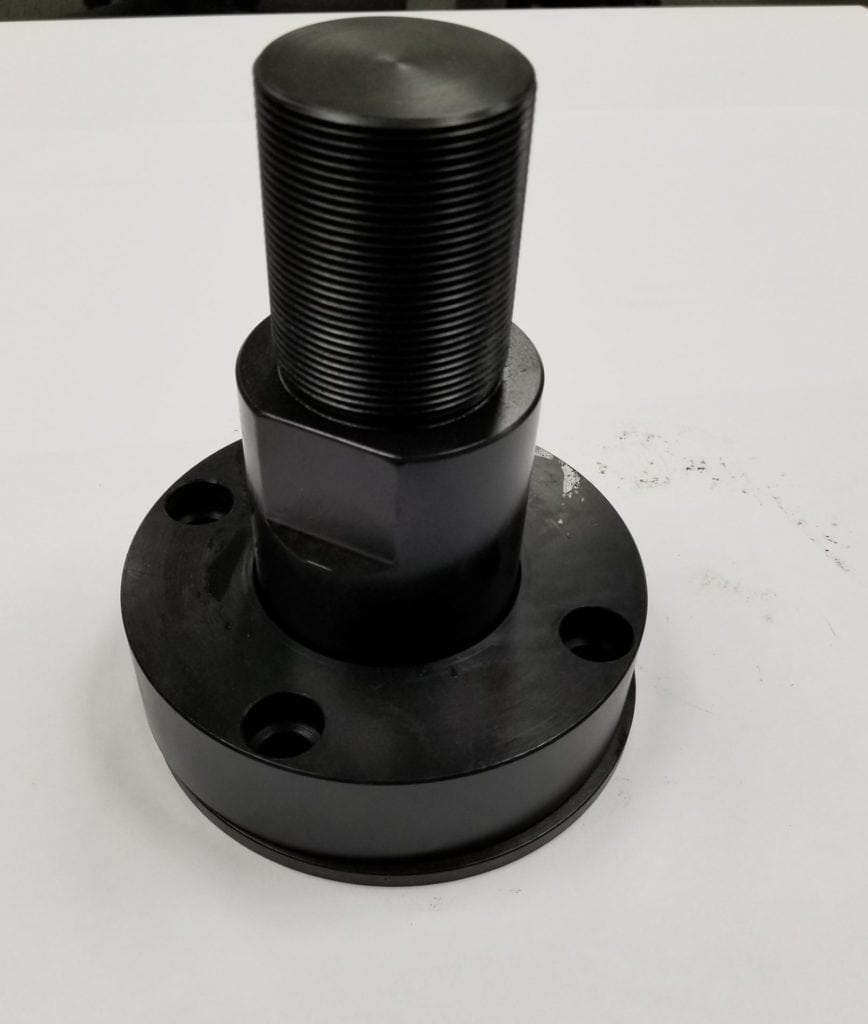

The PAF/Q Series alignment coupling is a flexible, quick-change connection for use with all HyperCyl® cylinders and conventional die sets. The coupling provides an axial float between the cylinder and customer supplied die set, minimizing side loading of the cylinder rod, extending cylinder life. Alloy steel (Rockwell “C” 58/60) construction with black oxide finish. Included with purchase: Adapter, Flange and back-up plate.

Available in all Cylinder sizes and in following configurations:

PAF-XX                 PAQ-XX

PAF-XX-NR         PAQ-XX-NR

PAF-XX-F             PAQ-XX-F

PAF-XX-NR-F     PAQ-XX-NR-F

(NR)=Non-Rotate                  (PAF)= Standard Coupling
(F)=Female Thread               (PAQ)= Quick-Change Coupling
(XX)=Cylinder Tonnage
